Brand: SMRC
Product No.: P7 Max
Product Description: Three-axis brushless gimbal + digital image transmission + laser obstacle avoidance
Product color: black
Aircraft specifications: folded 23*12*13CM/ unfolded 40*40*12CM
Packing specifications: backpack + color box
Color box packaging size: 34.5*25.5*13.5CM
Backpack packaging size: 34*25*13.5CM
Backpack packaging weight: 2315g (including the weight of the built-in obstacle avoidance head)
Single machine weight (without battery): 529g (including the weight of the built-in obstacle avoidance head)
Single machine weight (with battery): 783g (including the weight of the built-in obstacle avoidance head)
Single battery weight: 254g
Data remote control weight: 330g

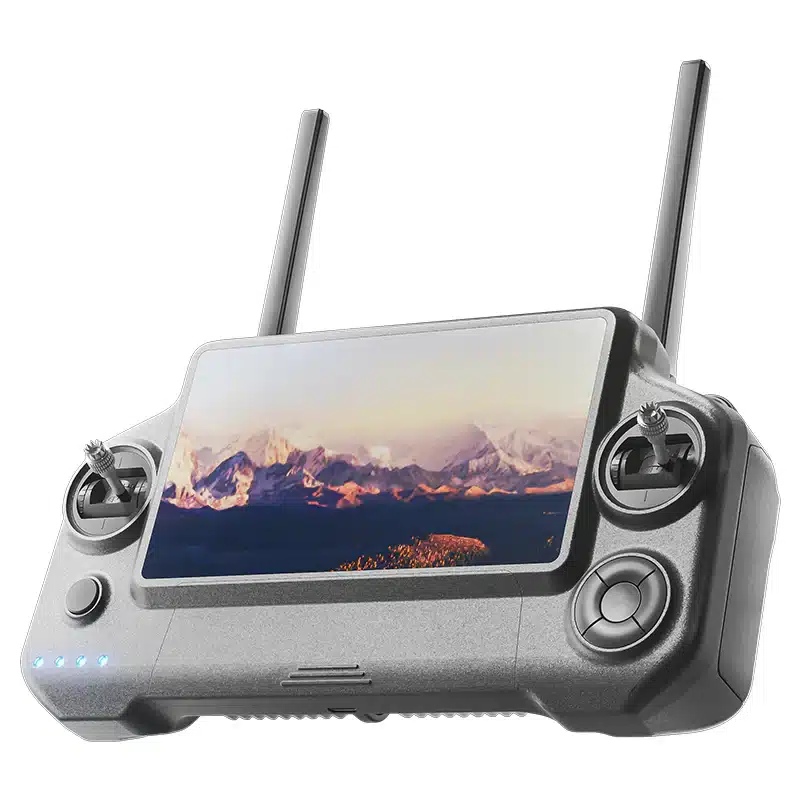

Touch screen remote control weight: 578g
Built-in obstacle avoidance head weight: 55g
External obstacle avoidance head weight: 23g
Working frequency: 5G
Aircraft battery: 11.4V 4700mAh (fast charging battery)
Remote control battery: 7.4V6000MAH built-in battery
Flight time: 40-46 minutes
Charging time: about 2 hours (the light flashes when charging, and the light stays on when fully charged)
Remote control charging time: about 2.5 hours
Remote control phone holder size (supports maximum phone size): 15 inches
Cruise range/remote control distance (no interference, no obstruction): digital 6000M
Image return distance (no interference, no obstruction): 6000M
Wind resistance level: 6-7
Flight altitude: 500M
Charging mode: USB charging cable
Lens angle: 110°
Digital zoom range: 3x
Video resolution: 4K
Photo resolution: 3840*2160 (TF); 7680*4320 (APP)
Transmission frame rate: 25 -30fps
Photo format: JPEG
Video format: MP4
Gimbal axis number: 3 axes
Structural design range: pitch 110%; roll 45°; yaw 65°
Function introduction: three-axis mechanical stabilization gimbal + electronic stabilization anti-shake + laser obstacle avoidance
1. GPS one-key return to take-off point, low battery return, no signal return.
2. ①GPS smart follow; ②Image follow: Identify the subject and automatically follow the flight
3. SMRC P7 MAX Gesture shooting recognition: Within 1-3m from the aircraft, face the camera to make a photo/video gesture
4. SMRC P7 MAX Route multi-point planning flight: The aircraft flies autonomously according to the pre-set route, the player focuses on shooting, and the screen system touches
5. SMRC P7 MAX Fixed-point surround: Find the center point of the surround, and then move the desired surround radius through the joystick
6. SMRC P7 MAX Aircraft retrieval function: Click the GPS signal icon 3 times in a row to open the map interface. The map shows the last distance, longitude and latitude of the aircraft
7. Picture, music and video sharing: You can select single or multiple photos to share, and videos can only be shared one at a time
8. 4K adjustable camera (three-axis mechanical stabilization gimbal + electronic stabilization anti-shake + laser obstacle avoidance)
9. 11.55V plug-in smart lithium battery
