SJRC F22 S3 XR Drone with 6K Camera 2025

SJRC F22 S3 XR 4K Drone 3-Axis Gimbal 6KM Repeater FCC EIS HD Camera GPS 5G Quadcopter with Screen Remote Control

PRODUCT SPECIFICATION:
Operating Frequency: 5G
Downward visual distance finding module: Yes
Drone Intelligent Battery: 11.1V 3500mAh
Control distance (Outdoor and unobstructed,
depend on the environment and mobile device):  6 KM
5G USB digital transmission distance (Outdoor and
unobstructed,depend on conditions and mobile device): About 6 KM
Flight time: About 40 min
Charging time: About 2 hours
TYPE-C USB Charging (5V/3A): Yes
Unfolded Product Size  Folded: Unfolded: 350X350X83mm; Folded: 202X107X83mm
Product Weight: 615g

Transmitter charging time: About 150 min
Transmitter operating time: About 4 hours

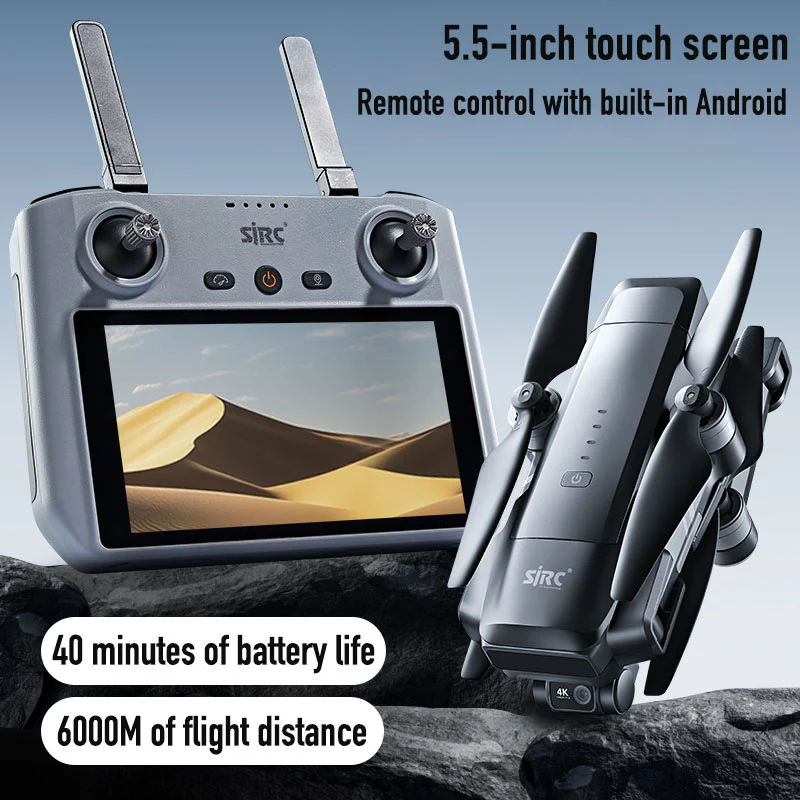

Transmitter Screen Size: 5.5-inch
Wifi of Remote Controller: Frequency: 2412~2472Mhz; EIRP＜20db
Bluetooth 5.2 of Remote controller: Frequency: 2402~2480Mhz; EIRP＜10db
Storage Capacity of Remote controller: ROM Storange: 32G; Extensible SD Card: Up to 256G; Supported UHS-I Speed Grade3 or later
SJRC F22 S3 XR Weight: 425g
Software installation: APP wireless upgrade, does not support the installation of other APP
Microphone: Yes
Speaker: Yes
Satellite Systems GPS / BDS: Yes

INTRODUCTION TO FUNCTIONAL FEATURES:
3-Axis Gimbal Mechanical Range & Control Range: Roll Angle: -35° – +35°; Pitch Angle: -130° – +40°; Pan Angle: -15° – +15°; Adjustable Angle: -90° – +0°
Gesture Control (Shotting / Video): 1-3 M
IMAGE Recognition Follow me: 3-10M
GPS Follow me: 10-50M
Way Point Flight: Yes
Point of Interest: Yes
Image filter adjustment: Yes
Image Scaling: Yes
Video Editing: Yes
Visiting Trace: Yes
MPH & m/s & km/h Conversion: Yes
Satellite Systems GPS / GLONASS: Yes

FPV PARAMETER:
FOV: Horizontal:56°; Vertical:33°
Photo Resolution (Mobile): 3840x2160P
Video Resolution (Mobile) : 1280x720P
Photo Resolution (SD Card) : 8000x6000P
Video Resolution (SD Card) \Frame Rate: 60FPS: 1920x1080P; 30FPS: 3840x2160P
Photo Format: JPG
Video Format: MP4
One Key Share Photo / Video: Yes
SD CARD: 32G-256G (Not Included)
Card Reader: Not Included
Mobile Device System Version: iOS 12.0 or later / Android 9.0 or later

Features:
1. GPS returns to the take-off point with one click, low battery return, no signal return.
2. ①GPS smart follow: follow the phone to fly; ②Image follow: identify the subject and follow the subject for 360-degree surround flight.
3. SJRC F22 S3 XR gesture shooting recognition: within 1-3m from the aircraft, face the camera to make a photo gesture/video gesture.
4. SJRC F22 S3 XR route multi-point planning flight: the aircraft flies autonomously according to the pre-set route, and the player focuses on shooting.
5. SJRC F22 S3 XR fixed-point surround: find the center point of the surround, and then move the desired surround radius through the joystick.
6. SJRC F22 S3 XR intelligent functions: one-click long-distance flight, one-click skyward, one-click spiral, vertical screen aerial photography, time-lapse photography, panoramic shooting.
7. SJRC F22 S3 XR downward ranging module: stable hovering at low altitude without GPS or weak signal; turn on the night vision auxiliary light to ensure your hovering performance in low-light environment.
8. USB digital image transmission: easy to use, long distance, stable transmission, strong anti-interference.
9. Aircraft retrieval function: open the APP—Settings—Track—Find aircraft, enter the map interface, the map shows the last distance, longitude and latitude position of the aircraft.
10. Picture and video sharing: You can select single or multiple photos to share, and videos can only be shared one at a time.
11. The lens angle is 65°, and the camera can be adjusted to 90°.
12. 11.1V plug-in smart lithium battery, ultra-long battery life.
